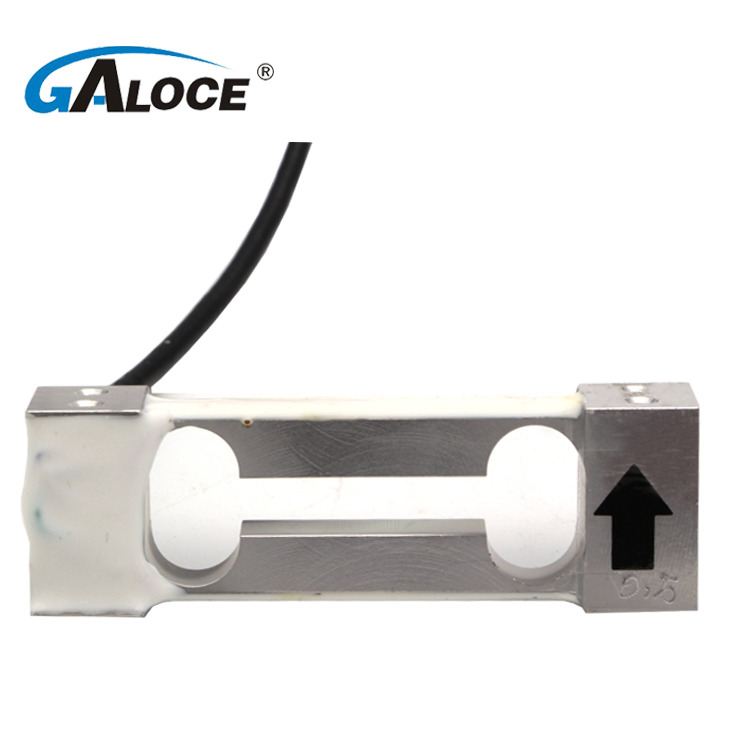

Name: GPB146 High Accuracy C3 Electronic Weight Scale Single Load Cell
Brand: GPB146 High Accuracy C3 Electronic Weight Scale Single Load Cell
SKU: GPB146
Price: 1 USD
Availability: InStock
Rating: 4.6 (114 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: GPB146

Type: Load Cell

Usage: weight

Theory: Resistance Sensor

Output: Analog SENSOR

Description: load cell

Range: 0.5, 1, 3, 5, 6, 10, 15, 20, 25(KG)

Accuracy: C3

Comprehensive error(%F.S): Â±0.02

Rated output(mv/v): 2.0Â±0.2

Creep (%F.S/30min): Â±0.02/Â±0.017

Zero balance(%F.S): Â±1.0

Input resistance(Î©): 405Â±10

Output resistance(Î©): 350Â±3

Insulation resistance(MÎ©): â‰¥5000(100VDC)

Item: GPB146 High Accuracy C3 Electronic Scale Single Point Load Cell

Basis informatie

Model Number: GPB146

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Standard export packaging

Supply Ability: 10000 Piece/Pieces per Month GPB146 High Accuracy C3 Electronic Scale Single Point Load Cell

Productomschrijving

GPB146 High Accuracy C3 Electronic Scale Single Point Load Cell

Related recommend

Product Description

Features:

The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Dimension:

Specifications:

Specification:
Range: 0.5, 1, 3, 5, 6, 10, 15, 20, 25(KG)
Accuracy : C2	Temp. effect on span(%F.S/10℃): ±0.02
Comprehensive error(%F.S) : ±0.02	Temp. effect on zero(%F.S/10℃) : ±0.03
Rated output(mv/v) : 2.0±0.2	Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.02/±0.017	Use temp. range(℃ ) : -20~+60
Zero balance(%F.S) : ±1.0	Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 405±10	Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3	Ultimate overload (%F.S) : 150
Insulation resistance(MΩ): ≥5000(100VDC)	Defend grade : IP65

Application

Process Flowchart

Packaging & Shipping

Packing

Standard export package: each unit has individual box and all boxes are packed in standard packages.

Shipping

Products are shipped from china. We will sent out within 15 working days after the payment. We usually sendthe parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach your side which depend on the country delivery to.

Our Services

Service standards: we are committed to provide a high quality and responsive service to all clients

The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.

Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.

Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business

OEM available

FAQ

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, Money Gram, etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
