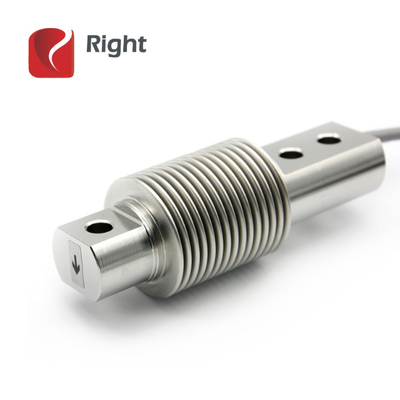

Auto Press T701 IP68 5 10 20 30 50 100 200 500kg Stainless Steel Weighing Load Cells

1 Piece
MOQ
$15.00(1 - 9 Pieces) $9.00(>=10 Pieces)
Prijs
Auto Press T701 IP68 5 10 20 30 50 100 200 500kg Stainless Steel Weighing Load Cells
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: T701
Type: Load Cell, Bending Beam load cell
Usage: Weight Measure, PRESSURE SENSOR
Theory: Resistance Sensor, Resistance Sensor
Output: Analog & digital output, Digital Sensor
Description: load cell
Sensitivity: 2 ± 0.05%mV/V
Application: Auto Press,Robotics,Medical
Capacity: 5,10,20,30,50,100,200,500 Kg
Accuracy class: C3
IP Grade: IP 68
Keywords: IP68 5 10 20 30 50 100 200 500kg Stainless Steel Weighing Load Cells
Basis informatie
Model Number: T701
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard exporter carton packing including of instructions. Water Proof & Shock Resistance.
Supply Ability: 1000000 Piece/Pieces per Month 5 10 20 30 50 100 200 500kg Stainless Steel Weighing Load Cells
Productomschrijving
Product Description

Introduction

Multi-Purpose Beam Load Cells Multi-Purpose, single-ended beam load cells - convert any structure into a Weighing Scale. Accurate Weighing C3 The multi-purpose beam load cells can be selected to suit the accuracy requirements of the application with OIML C3 as well as Ex NEPSI approvals available. No matter what accuracy your application requires, you will find a suitable load cell. Fully approved Global approvals such as OIML, NTEP are provided as standard; thus the load cells can be used globally in legal-for-trade and Ex weighing systems. The full set of approvals allows versatility and ensures safety in a broad range of applications. The product features: • Capacity range 5kg .. 500kg (11lb .. 1102lb) • Material: stainless steel • Accuracy: OIML C3 • Hazardous Approvals: NTEP • IP68 Protection Class High Protection Class Due to the hermetically sealed (welded) design and multi-purpose load cells are ideal for harsh environments in process, food and pharma applications. The IP68 protection class is suited to wash-down applications.


Specification

- Parameter -

Specifications
Capacity
5,10,20,30,50,100,200,500Kg
Sensitivity
2±0.05%mV/V
Zero balance
±2% F.S.
Non-linearity
0.018%F.S.
Hysteresis Error
0.017%F.S.
Repetition
0.018%F.S.
Creep(30min)
0.0166%F.S.
Temp. effect on sensitivity (TKc)
0.008%F.S./10℃
Temp. effect on zero balance (TKo)
0.0125%F.S./10℃
Input Resistance
390±5Ω
Output Resistance
350±5Ω
Insulation Resistance
≥5000MΩ/100VDC
Excitation Voltage
5~15V
Max. excitation Voltage
20V
Compensated temp range
-10~40℃
Service Temperature Range
-30~70℃
Limit load (E L)
150%F.S.
Breaking load (E d)
300%F.S.
Cable size
φ5.4×1500mm
Material (Measuring element)
stainless steel or alloy steel
Weight (G),approx
0.5kg


- Dimension -


- Load Direction -

- Wiring Code -
