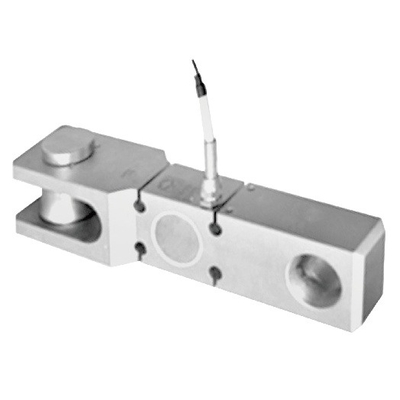

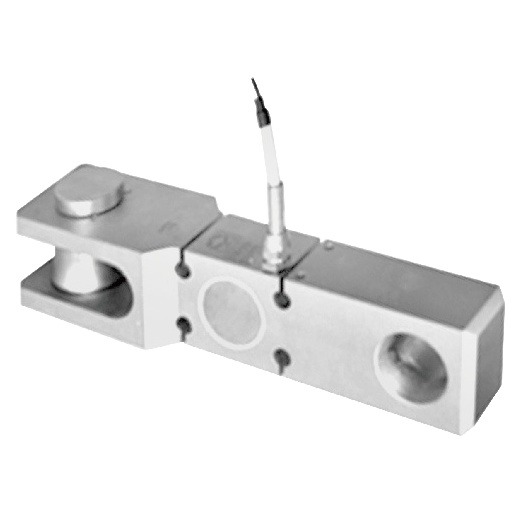

tension load cell hook scale overload protection equipment

1.0 Pieces
MOQ
tension load cell hook scale overload protection equipment
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: BC
Type: Load Cell
Usage: Force Sensor
Theory: strain gauge
Output: 2.0mv/v
Description: BC tension load cell
Capacity: 5~20t
Rated output-R.O.: 2.0 mV/V
Zero balance: 1.0 ±% of rated output
Non linearity: 0.05 ±% of rated output
Hysteresis: 0.05 ±% of rated output
Non-repeatability: 0.02 ±% of rated output
Temperature effect on sensitivity: 0.011±% of rated output/℃
Operating temperature range: -20 to +60 ℃
Safe overload: 150 % of R.C
Ultimate overload: 200 % of R.C
Basis informatie
Model Number: BC
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton, Paper with foamed plastsic
Supply Ability: 10000 Piece/Pieces per Month
Productomschrijving
Product Description

BC

Features:
★capacities from 5~20t
★alloy steel construction
★protection class IP67
★good performance in overload
★reliable in performance

Applications:
hook scale
★crane overload protection equipment
mm
L
L1
L2
L2
L3
L4
W
5t
365
337.5
54
293
95.5
35.5
43
10t
388
353
80
301
102
42
53
15t
418
374
80
321.5
107
42
75
20t
478
429
361
127
52
90
WE PROVIDE CUSTOMIZATION FOR YOUR OWN NEEDS.
mm
H
H1
H2
H3
∅D
∅D1
5t
80
50
26
70
∅35
∅25
10t
97
60
32
85
∅40
∅32
15t
97
60
35
85
∅44
∅42
20t
107
70
44
95
∅52
∅51
WE PROVIDE CUSTOMIZATION FOR YOUR OWN NEEDS.
Specification
Model
bc

Accuracy class
C3

Capacities
5~20
t
Full scale output(FS)
2.0±0.004
mV/V
Non-linearity
≤±0.05
%FS
Hysteresis
≤±0.05
%FS
Non- repeatability
≤±0.03
%FS
Creep error (30 minutes)
≤±0.016
%FS
Zero Balance
±1.0
mV/V
Temperature effect on sensitivity
≤±0.011
%FS/10℃
Compensated temperature range
-20~+60
Operating temperature range
-35~+70
Input resistance
380±20
Output resistance
352±2
Insulation resistance (50VDC)
≥5000
MΩ
Operating Voltage
5~12(DC)
V
Safe overload limit
150
%FS
Ultimate load
200
%FS
Cable length
3
m
protection class
IP67

Element material
Alloy Steel

Related Products
     Bending beam load cell               Shear beam load cell                           Indicator                              Truck scale load cell
Equipment

Strain gauge under dust-free condition

Digital calibration test

Dust-free and constant temperature&humidity Room

TC0 SPAN testing machine

Our Company

Anhui Zhimin electrical technology CO.,Ltd is a fast growing domestic leader in strain gauge transducers for multiple application in force, weighing, load limiting, torques and other specialized manufacturing(oil, space, laboratories,, multiple-dimension etc. ). An unrelenting strategic focus on our customers' needs and a succession of technological challenges supported by research and significant development, by continuous innovation and improving our traducers, and finally by an organization recognized by the highest quality standards drives our culture.

Founded in 2000, ZM has served and established good relationship with a number of customers in almost all the automation areas such as industries of metallurgy, chemicals, architecture, building materials, lifting, transportation and aviation. The company was awarded the title of 'high and new technology industries' by government in 2018 and successfully listed on the stock of Anhui innovation board in 2019(Code:630129).

Certifications
Packing & Delivery

♦ Packing: packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with filter of foamed plastic.

♦ Delivery: A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping

FAQ

1.What information  do I need to provide before placing an order?

The size, capacity and usage are necessary. Besides, we may need some other parameters.


2.Can you design and customize products for me?

Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.


3.How long is your warranty period?

Our warranty period is 12 months.


4.I am the buyer purchasing  a large number of load cells every year, can I visit your company and discuss in person?

We are delighted to meet you in China and really welcome you to communicate technical questions with us. If your coming could establish cooperative relationship, we are also delighted to pay travel expense for you..
