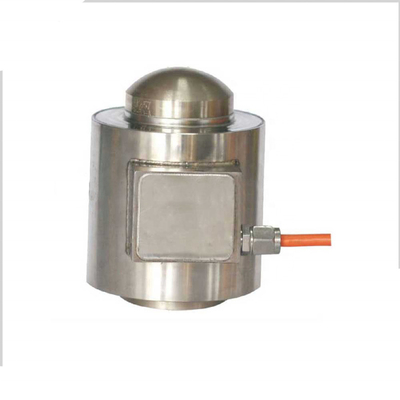

CLKB 2t to 50t Truck Scale Compression Load Cell (PR6201) for Hopper Scales

1.0 piece
MOQ
CLKB 2t to 50t Truck Scale Compression Load Cell (PR6201) for Hopper Scales
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: CLKB
Type: Load Cell
Usage: Truck scale
Theory: Resistance
Output: 1.0±0.002mV/V
Description: load cell
Capacity: 2t~ 50t
Sensitivity (Cn): load cell: 1.0±0.002mV/V
Accuracy: 0.03% F.S
Input resistance: 650±10Ω
Output resistance: 610±3Ω
Excitation Voltage: 5~12VDC
Insulation resistance: 5000MΩ
IP class: IP67
Material: Alloy Steel
Warranty: 1 Year
Basis informatie
Model Number: CLKB
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 300 Piece/Pieces per Day
Productomschrijving
Product Description
Rated capacity
D1
D2
D3
F
H1
H2
H3
L
2,3,5
dia 24
dia 70
dia 88
15
138.5
120
17
107
10,15,20,25,30,40,50
dia 54
dia 70
dia 88
35
138.5
120
17
107
Specification
PARAMETER
VALUE
UNIT
Rated capacity-R.C.
2,3,5,10,15,20,25,30,40,50
t
Total Error
0.05
±% FSO
Rated output
1.0±0.002
mV/V
Zero balance
1
±% FSO
Creep Error
0.02
±% FSO
Temperature effect on zero
0.02
±% FSO/10℃
Temperature effect on output
0.02
±% FSO/10℃
Temperature Range,compensated
-10~+40
℃
Operating TemperatureRange
-20~+70
℃
Maximum safe load limit
150
% of R.C.
Ultimate over load
300
% of R.C.
Recommend excitation voltage
10
Vdc
Maximum excitation voltage
15
Vdc
Input resistance
650±10
Ω
Output resistance
610±3
Ω
Insulation resistance
≥5000
MΩ
sealing
IP67
Construction
Alloy steel
Stainless steel
Cable
Length:14m
Diameter:Φ6mm
Company Profile
Ningbo Zhengyan Technology specializes in the research, development, design and production of various high precision force transducers, load cells, torque sensors for multiple applications over 15 years. The products are for a wide range application, such as weighing systems, force measurement, load limitation, process control, oil and gas industry, chemical industry, food and medical industry and so on. We can help you to solve your problem either with one of the special load cells already in production or by the developing a custom-made product. Designing and developing new quality solutions is our specialty.
Packing & Delivery
Supply Ability :
500 Piece/Pieces per Day
Neutral packing or according to customers' requirements.
FAQ
1. who are we? We are based in Zhejiang, China, start from 2016,sell to North America(15.00%),Western Europe(20.00%),South America(10.00%),Northern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Oceania(5.00%),Eastern Europe(10.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Load Cell,Force transducer,Torque transducer,Load Pin,Weighing Sensor 4. why should you buy from us not from other suppliers? Ningbo Zhengyan Technology Co.,LTD has specialized in the research, development, design and production of various high precision force transducers, load cells, load pins, torque sensors for multiple applications over 15 years. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
