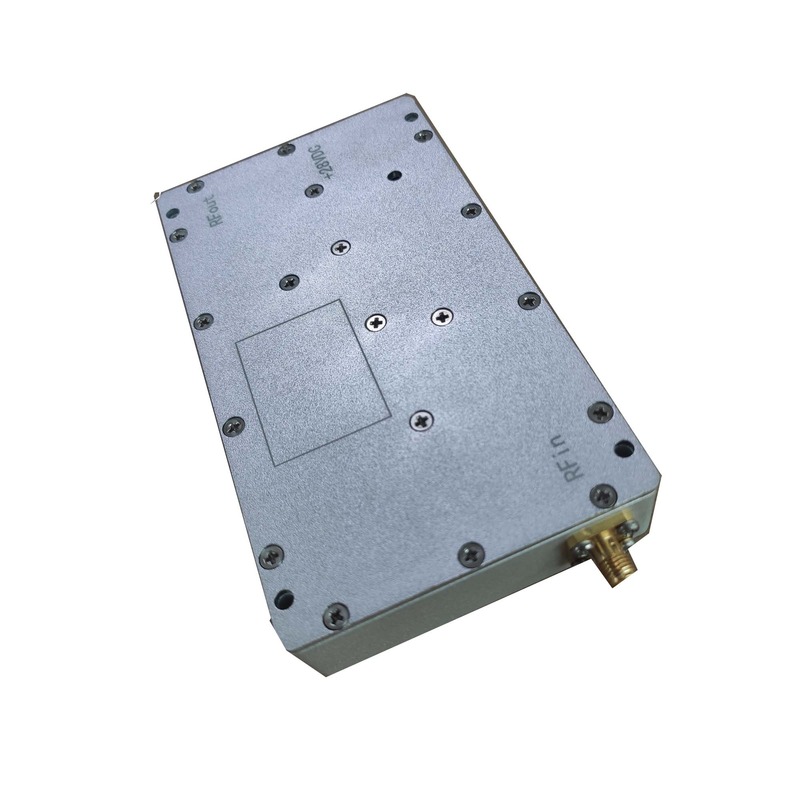

25W RF 4G LTE 1800MHz Boosting Power Amplifier For Cell Phone Jammer

Item

Requirements

Frequency Range

1805-1880MHz

Gain

≥50dB

In-Band Ripple

≤2dB

Max RF Input

10dBm

Input Signal

CW

Max RF Output Power

≥47dBm

Gain Adjust Range

0-31dB

Input/Output VSWR

≤1.3

Working Voltage

28VDC

Working Current

≤3A(Full Power)/PA

RF Input/ Output Ports

SMA-Female/N--Female

Power Supply Interface

2W2-Male

Dimension

Less than 125x175x28mm

Working Temperature

-25 to 65

Monitoring function (DB15,Female)

PIN1: 1dB Attenuation

PIN2: 2dB Attenuation

PIN3:4dB Attenuation

PIN4: 8dB Attenuation

PIN5:16dB Attenuation

PIN 1~5: (Hang in air or add 5VDC: No attenuation; Grounding: attenuation)

PIN7: V/L, VSWR(reflected RF Power, Max voltage,3.3V; 0.1V/1dBm)

VSWR Alarm TTL High(5V)@reflected power 25~50W –the alarm is not latched signal

PIN10:P/L(Output RF Power; Max voltage,3.3V; 0.1V/1dBm)

PIN11: LE :Enable, High Level: OFF; Low Level: ON

PIN14: T/L temperature Monitor VT(10mV)*Tc(℃)+500(mV)->TC=Case temperature +/- 5℃Over Temp Alarm and shutdown: High(5V)-case temp.85+/-5℃ –Auto Restart Low@case temp.65℃

PIN15: GND

Other: NC
