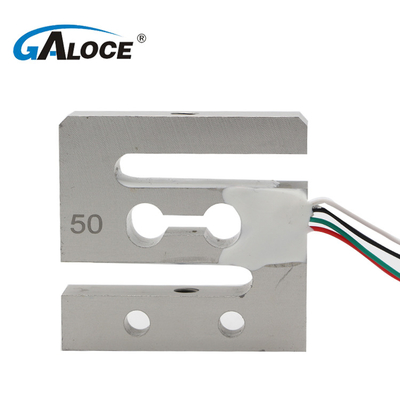

GSL309 Weight Silo Hopper Scales Pull Sensor S-type Load Cell

Rated Capacity(KG)

2,5,10,20,30,50,100

Input Resistance(Ω)

395±10

Rated Output(mV/V)

2.0±10%

Output Resistance(Ω)

350±5

Nonlinearity

±0.03%F.S

Insulation Resistance(MΩ)

≥2000

Hysteresis

±0.02%F.S

Excitation Voltage

5~12VDC

Repeatability

±0.02%F.S

Compensated Temperature Range

-10℃~+40℃

Creep(30minutes)

±0.03%F.S

Operating Temperature Range

-20℃~+60℃

Zero Balance

±2.00%F.S

Safe Overload

150%FS

Temperature Effect on Zero

±0.05%FS/10℃

Ultimate Overload

200%FS

Temperature Effect on Output

±0.05%FS/10℃

Defend grade

IP65

Free consult support

24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

All staffs of GALOCE are open, honest and communicative to customers with respect.

Customization

Provide OEM service, most products are customizable (please consult with us for details).

After sale service

One year warranty since product shipped out. Fully technical support for application.

1. What essential information is needed for product selection?

Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.

2. How will you ensure quality of your products?

A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.

B. One year warranty and life time free consult to any needs related with our product.

3. What terms of payment is acceptable?

T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.

4. When production could be arranged?

As soon as the payment was received.
