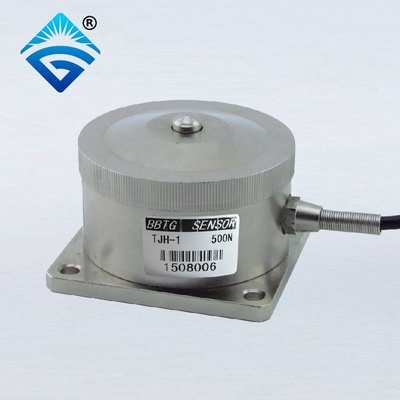

Name: TJH-1 0.5kg 1kg 2kg 3kg 20kg 100kg PRESSURE SENSOR Micro Pressure Sensor Load Cell Scales
Brand: TJH-1 0.5kg 1kg 2kg 3kg 20kg 100kg PRESSURE SENSOR Micro Pressure Sensor Load Cell Scales
SKU: TJH-1
Price: 1 USD
Availability: InStock
Rating: 4.9 (192 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: TJH-1

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Output: Analog SENSOR

Basis informatie

Model Number: TJH-1

Betalen & Verzenden Algemene voorwaarden

Packaging Details: According to the order situation

Supply Ability: 10000 Piece/Pieces per Day

Productomschrijving

Product Description

1. Rated Force Range: 30-1500N

2. Cable length: 3m

3. OEM: Acceptable

4. Certification: ISO9001

5.Packing: See the details

Parameters

Product Name	Spoke type pressure force load cell (5-70kN)
Accuracy	0.1%FS
Sensitivity	1.5~2.0mV/V
Non-linearity	0.05%
Relative creep over 30 min	0.05%
Temp. influence on sensitivity	0.05%FS/10℃
Temp. influence on the zero signal	0.05%FS/10℃
Zero output	±1.0%FS
Input resistance	380±10Ω
Output resistance	350± 3Ω
Insulation resistance	>5000 MΩ
Operating temperature range	-20~+65℃
Nominal (rated) temperature range	-10~+45℃
Reference temperature	23℃
Reference excitation voltage	10V DC
Limit force	150%
Breaking force	>300%
Material	Alloy Steel
level of protection	IP66
Mode of connection	Input+ : Red, Input- : Black, Output+ : Green, Output- : White
Mass	2.0kg

Products Show

Features

1. Made of alloy steel
2. Suitable for belt weigher, batching scale and other weighing devices
3. Good steel performance, Special type T overload protection device and high accuracy

Dimension drawing
