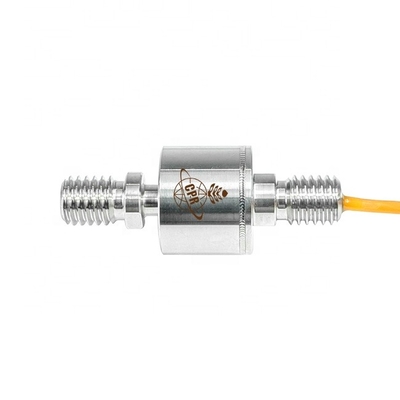

CPR605 Pressure Sensor Small Both Ends Thread Tension Compression Load Cell Weight Sensor

1 Piece
MOQ
$58.00(1 - 4 Pieces) $52.00(5 - 49 Pieces) $48.00(50 - 99 Pieces) $45.00(>=100 Pieces)
Prijs
CPR605 Pressure Sensor Small Both Ends Thread Tension Compression Load Cell Weight Sensor
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: CPR605
Type: Load Cell, Double ended threaded column type Miniature Threaded In Line Load Cell
Usage: Pressure Sensor
Theory: Resistance sensor
Output: Analog Sensor
Description: force sensor (compression & tension)
Capacity: 0~500kg
Material: Stainless Steel Load Cell Sensor
Non-linearity: 1%R.O
Rated output: 1.0±10%mV/V
Function: Force Measuring Transducer
Keywords: Miniature tension compression Threaded In Line Load Cell force sensor
Basis informatie
Model Number: CPR605
Betalen & Verzenden Algemene voorwaarden
Productomschrijving
Company Profile
-National high-tech enterprise, R&D and manufacturing capabilities Shenzhen Cooperation Sensors Instruments Co., Ltd., was origined from 1995, recognized as high-tech enterprise in the design and manufacture of sensor technologies. There are 80% professional technicians in our total staff so that strong technology support could be offered to our clients. Our factory has modern sensor production line using global advanced manufacturing technology and management concepts to ensure our various types of sensors and detection instruments qualifies different market requirements. We look forward to establishing a long term and reliable trade cooperation on the principles of win-win. -Product categories and market services, agents of well-known foreign brands Our leading products include pressure sensors, miniature load cells, digital sensors, microcontroller multi-function miniature pressure display indicator, all-electric injection molding machine series sensors, intelligent GPRS module sensor signal transmission, intelligent fire-fighting instruments, software engineering support etc. Our company's marketing network covers all over 32 provinces of China after nearly 10 years of continuous development with the aim of providing customers with high-quality products and perfect after-sales service. We are also the agent of world well-known brands from Japanese and European, such as Japanese NMB load cell series, pressure sensors and meters, and American TRANSCELL, CELTRON's load cells and meters. Japanese NMB series sensors have been accepted widely in domestic market because of its reliable quality and economic price also as the first choice for national defense and high-precision control product. -Development history and important achievements In 2004, authorized by Japan NMB for long-term operating in China. In 2006, launched into foreign markets successfully. In 2007, became a special distributor of Freescale (formerly MOTOROLA) on pressure sensors. In 2014, our expansion force test system gained a national patent. In 2017, became a strategic partner with Harbin Institute of Technology. In 2018, became a national high-tech enterprise and developed a variety of new energy sensors and software, launched a new product which can monitor expansion force and displacement at the same time. In 2019, the expansion force test system successfully entered the field of new energy vehicles, and the newly developed products are installed distributed force and constant force test systems.

Features & Applications

* Double ended miniature tension load cell
* Stainless steel construction
* EMC/FCC/ROHS approved
* High accuracy
* High stability
* Easy to install
* Metal foil strain gauge technology
* Small size (17mm diagram) and large capacity
* Protected against corrosion by nickel-plated treatment
* Suitable for pushing, hopper scale, industrial measurement system
Dimensions


Options
Type
Cap
2-M
CPR605-5K
0~5kg
M5
CPR605-10K
0~10kg
CPR605-20K
0~20kg
CPR605-50K
0~50kg
CPR605-100K
0~100kg
CPR605-200K
0~200kg
M8
CPR605-500K
0~500kg
Specifications
Capacity
0~500kg
Zero balance
±10% R.O.
Rated output
1.0 ±10%mV/V
Temp.effect on zero
0.05 % R.O. / 10ºC
Non-linearity
1 % R.O.
Temp.effect on output
0.05 % R.O. / 10ºC
Hysteresis
0.5 % R.O.
Input impedance
500 ± 50Ω
Repeatability
0.5 % R.O.
Out impedance
500 ± 5Ω
Compensated temp range
-10℃~60℃
Insulation
≥2000MΩ(50V DC)
Temperature
-20℃~80℃
Safe overload
150%R.C.
Recommended excitation
5V DC
Ultimate overload
200%R.C.
Maximum Excitation
10V DC
Protection class
IP65(or IP67)
Cable
4-core shielded cable Ø2*3m red(E+) black(E-) green(S+ ) white(S-)
Q1: Are you trading company or manufacturer ? A: We are factory. Q2: Can you print our brand on the product? A: Yes, Of course. It can make customer’s brand logo. Q3: How to place an order ? Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters. Q4: Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance to the standards. Q5: What is lead time? If we have it in stock, we can ship it to you within about 7 working days. If we don’t have it in stock, the lead time will be 2-4 weeks. The specific time needs to be negotiated. Q6: What is the payment terms? T/T, Western Union, L/C, Paypal, etc. Escrow alibaba is acceptable. Q7: What is the express delivery? DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: express delivery, by sea, by air transport. If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice. Q8: What is the quality guarantee? Quality guarantee: 12 months. If the product has quality problem within 12 months,if there is quality problem which cuased by our side, you can send back goods for repair and pay the freight cost at your side. or we can send replacement.
