Name: Mainly used for platform ladders factory price floor measures shear beam asymmetrical load cell 100kg 150kg 200kg 300kg 500kg
Brand: Mainly used for platform ladders factory price floor measures shear beam asymmetrical load cell 100kg 150kg 200kg 300kg 500kg
SKU: LAG-A
Price: 1 USD
Availability: InStock
Rating: 4.6 (129 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: LAG-A

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Output: Analog SENSOR

Product name: Shear Beam Load Cell

Application: Mainly used for platform scales, floor scales, etc.

Structure: Aluminum Alloy

Capacity: 100kg 150kg 200kg 300kg 500kg

Rated output: 2.0Â±0.25%mV/V

Zero balance: Â±2%R.O.

Linearity Error: Â±0.02%R.O.

Repeatability Error: Â±0.015%R.O.

Protection Class: IP66

Certificate: ISO 9001:2008;

Basis informatie

Certificering: ISO 9001:2008;

Model Number: LAG-A

Betalen & Verzenden Algemene voorwaarden

Packaging Details: cartons,by sea/air

Supply Ability: 10000 Piece/Pieces per Month

Productomschrijving

Product Description

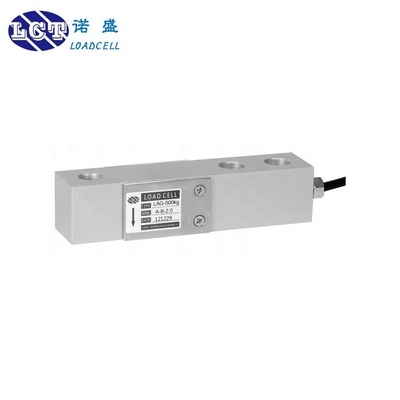

Shear beam Load Cells
Capacity	100kg 150kg 200kg 300kg 500kg
Accuracy Class	B
Rated output	2.0±0.25%mV/V
Zero balance	±2%R.O.
Linearity Error	±0.02%R.O.
Repeatability Error	±0.015%R.O.
Hysteresis Error	±0.015%R.O.
Creep(30 minute)	±0.03%R.O.
Temp.Effect On Output	±0.03%R.O./10°C
Temp.Effect On Zero	±0.05%R.O./10°C
Input resistance	405±10Ω
Output resistance	350±3Ω
Insulation Resistance	≥5000MΩ(50VDC)
Temperature Compensated	-10-+40°C
Operating Temperature Range	-20-+60°C
Excitation,recommended	5~12VDC
Excitation,maximum	18VDC
Safe overload	150%.R.C
Ultimate Overload	200%.R.C
Cable,and length	φ5mm×2m *
Protection Class	IP66

Features:

1.Aluminum alloy structure;
2.Output adjustment for parallel using;
3.Mainly used for platform scales,floor Scales etc.

Company Information

Xiamen Load Cell Technology Co.,Ltd.(LCT) is an open coastal city,with the advantages of special zone information and logistics. Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.

FAQ

1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.

2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.

3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.

4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.

5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.

6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.

7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
