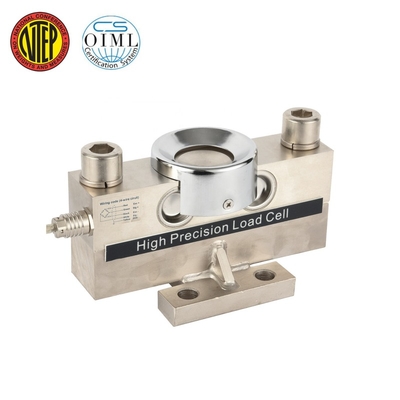

Thuis /Producten/Micro-belastingcel/Â ± 0.02%F.S/10â „ ƒ 10 15 20 30 40 Ton Zemic HM9B Full Ended Shear Beam Bridge Double Ended Load Cell

 ± 0.02%F.S/10â „ ƒ 10 15 20 30 40 Ton Zemic HM9B Full Ended Shear Beam Bridge Double Ended Load Cell

10 Pieces
MOQ
$55.00(10 - 19 Pieces) $50.00(>=20 Pieces)
Prijs
 ± 0.02%F.S/10â „ ƒ 10 15 20 30 40 Ton Zemic HM9B Full Ended Shear Beam Bridge Double Ended Load Cell
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: OS-401
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Description: double end beam load cell
Amplifier Type: Standard
Interface: Analog
Technology: Resistive
Application: Industrial Automation
Operating Temperature: -30℃ ~ +70℃
Package / Case: foam
Packaging: carton
Humidity Range: ≤85%RH
Measuring Range: 10~40 ton
D/C: OS-401
Accuracy class: OIML C3, NTEP 5000
Rated output: 2.0±0.002mV/V
Temperature effect on zero: ±0.02%F.S/10℃
Temperature effect on sensitity: ±0.02%F.S/10℃
Creep (30 min): ±0.02%F.S
Input resistance: 760±10Ω
Output resistance: 702±2Ω
Excitation recommend: 4~12VDC, max 15VDC
Construction: alloy steel
Protection class: IP68
Basis informatie
Model Number: OS-401
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Foam and carton
Supply Ability: 10000 Piece/Pieces per Month
Productomschrijving
Product DescriptionOS-401 double ended shear beam vehicle scale load cell is made with alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosive gas and medium making. It is suitable for electronic truck scales and other electronic weighing devices.Rated capacity10~40tAccuracy classOIML III, NTEP 5000Rated output2.0±0.002mV/VCreep (30min)±0.02%F.SInput resistance760±10ΩOutput resistance702±2ΩSafe overload150%F.SDestructive load300
