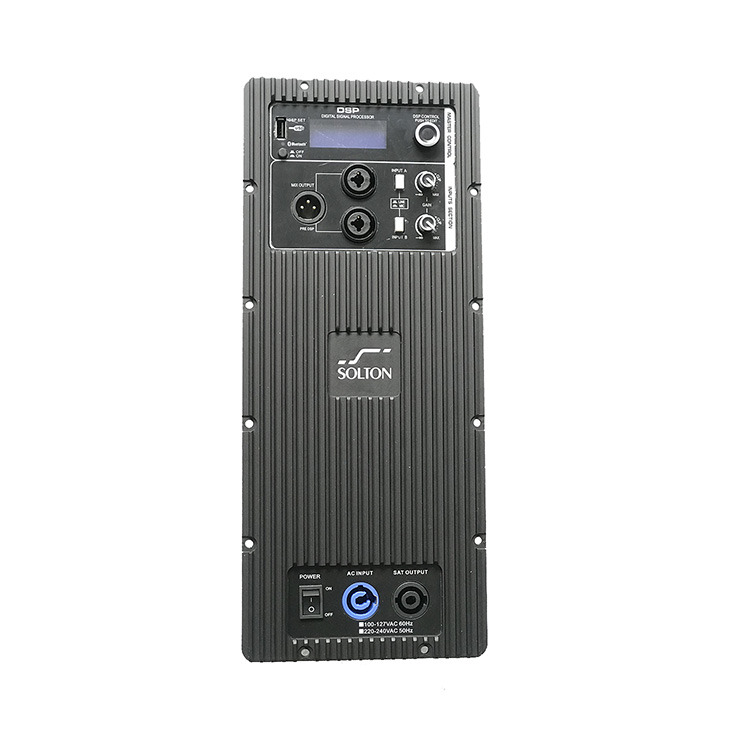

Digital Active Speaker Active Class D Power Amplifier Module For Active Speaker

100 Pieces
MOQ
$87.00(100 - 199 Pieces) $85.00(200 - 499 Pieces) $83.00(>=500 Pieces)
Prijs
Digital Active Speaker Active Class D Power Amplifier Module For Active Speaker
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: SPM1000AD-BT amplifier module
Type: Professional Amplifier, Class D digital power amplifier module
Channels: 3 (2.1)
Brand Name: Mellisong Group
Use: digital active speaker
Input voltage: AC100-240V 50/60Hz
Residual noise(Short circuit input): ≤5mV A
Rated POWER: 500+500W
With DSP: DSP amplifier module
S/N: ≥95dB
Cooling system: natural cooling
Led indicators: LCD
Certificering: ce, RoHS
Basis informatie
Certificering: ce, RoHS
Model Number: SPM1000AD-BT amplifier module
Betalen & Verzenden Algemene voorwaarden
Packaging Details: SPM1000AD-BT digital power amplifier module for active speaker: Carton, Safety packaging
Supply Ability: 5000 Piece/Pieces per Month SPM1000AD-BT
Productomschrijving
Model
SPM1000AD-BT
Rated Power
(CH1) 4ohm (1kHz,THD+N≤0.5﹪)
500W ±5%
(CH2) 4ohm (1kHz,THD+N≤0.5﹪)
500W ±5%
Crossover
Low pass
2000Hz, -6dB  24dB/oct
High pass
2600Hz, -6dB   24dB/oct
Protection
DC protect
Yes
Short circuit protect
Bass yes, high pitch no
High temperature protect
Yes
Input over load protect
Yes
Output over load protect
Yes
Soft startup protect
1~2 Second
Residual noise                       (Short circuit input)
≤5mV A
Sensitivity
LF: MIC: -40dBu±1dBu LINE: -4dBu ±1dBu at 100Hz
HF: LINE: -10dBu ±1dBu , at 10 kHz
THD
≤1% A
S/N
≥95dB
Cooling system
natural cooling
Led indicators
LCD
Volume control
LO:80Hz:±12dB,MID:2.5KHz±12dB TREBLE:10KHz±12dB,±2 dB
Connectors                      (Each channel)
Input connectors
COMBO
Output connectors
XLR
Mode
MUSIC/LIVE/VOICE/DJ
CUT
80/100/120/150HZ -3dB 24dB/oc
Working voltage
AC100-127VorAC220-240V 50/60Hz






Connection
Input: COMBO(XLR,6.3mm Jack), Output: Speakon compatible, binding post









Controls
ON/OFF,VOLUME,MODE(BRIDGE/PARALLEL/STEREO), GROUND LIFT
