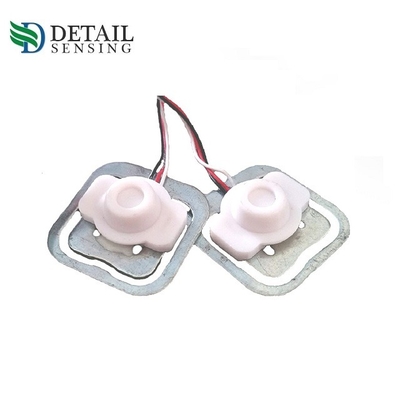

Chinese Low Cost 3kg, 5kg Kitchen Kitchen Scale Scales Weighing Sensor Micro Load Cell

10 Sets
MOQ
Chinese Low Cost 3kg, 5kg Kitchen Kitchen Scale Scales Weighing Sensor Micro Load Cell
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: DLC928NB
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Product name: Micro load cell
Capacity: 3kg,5kg
Accuracy: 0.05%
Material: Alloy Steel
dimension: 26*26*1mm
Excitation voltage: 3~10VDC
Use temperature: -10~+40℃
Safe overload: 120%
Ultimate overload: 150%
Application: kitchen scale,micro-fore test equipment
Basis informatie
Model Number: DLC928NB
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard export packaging for micro load cell
Supply Ability: 400000 Piece/Pieces per Month micro load cell
Productomschrijving

Chinese low cost 3kg, 5kg kitchen scales weighing sensor micro load cell

Product Description

Description of micro load cell

Model: DLC928NB

Category: micro load cell

Range: 3kg,5kg

Dimension: 26*26*1mm

Material:alloy steel

Application: handle scale,kitchen scale,microfore test equipment

Characteristic: kitchen scale load cell, micro force load cell

Specification of micro load cell

Specification

comprehensive error:

0.05%FS

output resistance:

1000±10Ω

Rated output:

3kg:0.75±0.2mv/v

5kg:1.25±0.2mv/v

Insulation resistance:

≥2000MΩ(100VDC)

Non-linearity:

0.08%FS

Excitation voltage:

3~10VDC

Hysteresis:

0.08%FS

compensated temp:

-10~+40℃

Repeatability:

0.05%FS

use temperature:

-10~+55℃

Creep:

0.1%FS/3min

temp effect on zero:

0.5%FS/10℃

Zero balance:

±0.5mv/v

Temp effect on span:

0.1%FS/10℃

Input resistance:

1000±10Ω

defend grade:

IP65

Company Information

Packaging & Shipping

Price,Package and Service

1. Price : EXW, FOB, C&F

2. Payment: T/T in advance, PayPal, Western Union.

3. Packing : standard export packing, including instructions and certificate

4. Leading time : 3-20 working days according to order quantity

5. OEM available

6. Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder

7. 7 days free replace & 1 year free repair for quality warranty
