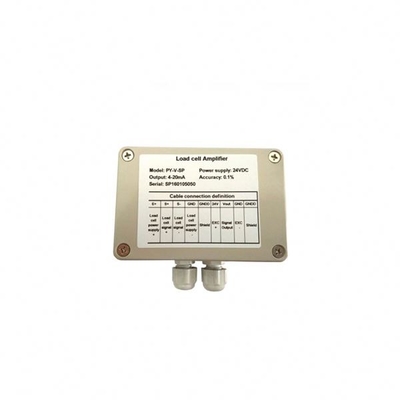

PRESSURE SENSOR SaintKing 4 to 20ma load cell signal amplifier module china

2 Pieces
MOQ
PRESSURE SENSOR SaintKing 4 to 20ma load cell signal amplifier module china
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: PY-V-SP
Type: force sensor
Usage: PRESSURE SENSOR, PRESSURE SENSOR
Output: Analog SENSOR, Analog SENSOR
Description: 4-20mA load cell amplifier
Product Name: 4 to 20ma load cell amplifier module
Material: plastic or aluminum alloy amplifier
Output signal: 0-5V, 0-10V, 4-20mA (Optional)
Working temperature: -20~80 ℃
Precision: more than 0.1%F.S
working temp.: -10--70 degree
load cell connection: 1- 4 sensors
Protection Level: IP65
Basis informatie
Model Number: PY-V-SP
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Packing of 4 to 20ma load cell amplifier module
Supply Ability: 4 to 20ma load cell amplifier module
Productomschrijving

Features:

  • Plastic housing, durable, cost-effective
  • Housing and wire joints are waterproof design, good sealing
  • High precision amplifier circuit, good stability
  • Anti-jamming performance
  • Wide sensitivity input range
  • Power supply with reverse protection, surge protection, overcurrent protection
  • Sensor excitation voltage adjustable
  • Portable, small size, light weight, easy to install
  • Suitable for weighing, pull push force, torque, tension and other strain sensor

Wiring details

Parameter

Input Signal mV
Sensitivity range Standard: 1MV/V, 1.5MV/V, 2MV/V, 3MV/V
Optional: 0.5MV/V, 4MV/V, 5MV/V ,6MV/V
Load cell Excitation Voltage 5~15VDC(Adjustable)
Operating Temperature -20~60°C
Operating Humidity
Protection grade IP65
Installation Housing fixing
Housing material ABS
Working Excitation voltage Standard: 12VDC, Optional: 24VDC
Output signal

Current:4~20mA, 0~10mA, 0~20mA

Voltage:0~5V, 0~10V, 1~5V, ±5V, ±10V

Please notify us which output you want when place order
Customized output for voltage output is supported

Accuracy

Current output type ≥ 0.05%F.S

Voltage output type ≥ 0.1%F.S

Load cell connection At most 4 units of load cell in 350 ohm

1.How can I get the precise price?
A.Please advise me the details of your design,such as the size,material,shape,printing,logo etc.
If you do not know the size and the material,we can recommend you material.

2.Can you offer us OEM Design Service?
A.Of course we can do the OEM Design Service With 10 years’ OEM design experience.We are happy to offer you OEM Design service.

3.Can I get a sample before mass production?
A.After price confirmation, you can require samples to check quality. we have sales team,own designers,own showroom,can help buyers to decide which products are their best choice,and all your inquiry will be replyed in time.

4.May I Visit Your Factory?
A: Warmly Welcome! Many Customers Visit Us When you Come to China.

5.How can you ensure the quality inspection?
A: On the order process, we have an inspection standard before delivery and will supply you with the pictures.

6.What's Your Major Markets?
A: Our Markets are Mainly Concentrated in America, Europe, Australia, Asian etc. Many of Our Cooperate Customers have Highly Praised Our Products and Services.
