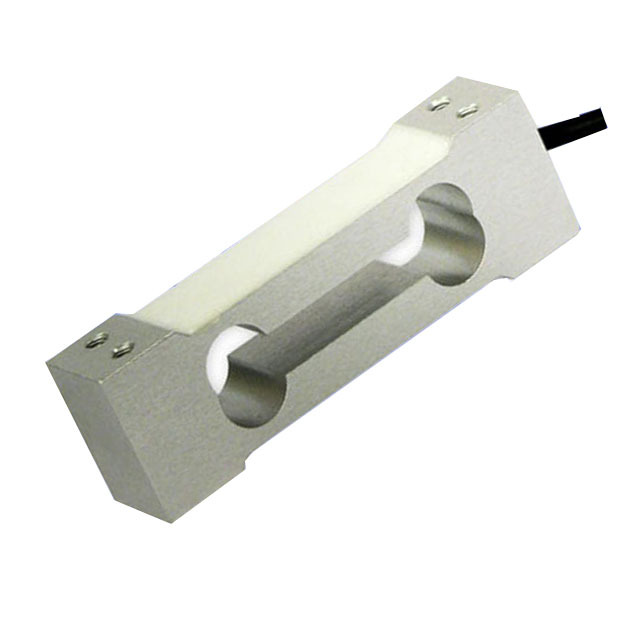

Name: Wide Range 0.5-25kg Parallel Beam Load Cell CL608
Brand: Wide Range 0.5-25kg Parallel Beam Load Cell CL608
SKU: CL08
Price: 1 USD
Availability: InStock
Rating: 5 (183 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: CL08

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Output: Analog SENSOR

Function: Weight Function

Material: Aluminum Alloy

Capacity: 0.5,1,3,5,6,10,15,20,25kg

Warranty: 12 Months

Application: Wide Range

Basis informatie

Model Number: CL08

Betalen & Verzenden Algemene voorwaarden

Packaging Details: Cartons

Supply Ability: 5000 Piece/Pieces per Month

Productomschrijving

Rated load (kg): 0.5,1,3,5,6,10,15,20,25

Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.

Parameters:

Precision : C2/C3	Temp. effect on span(%F.S/10℃): ±0.02
Comprehensive error(%F.S) : ±0.02	Temp. effect on zero(%F.S/10℃) : ±0.03
Rated output(mv/v) : 2.0±0.2	Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.02/±0.017	Use temp. range(℃ ) : -20~+60
Zero balance(%F.S) : ±1.0	Excitation voltage(V) : 9~12(DC)
Input resistance(Ω) : 405±10	Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3	Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)	Defend grade : IP65

DIMENSIONS(mm):

Wiring schematic diagram:

Red: Input ( + ) White: Output ( - )

Black: Input ( - ) Green: Output ( + )

Notes:It used 4-core shielded cable(φ5×500mm)
