Name: PRESSURE SENSOR XJC-DN-1050C Dynamic Rotary Torque Sensor Load Cell 5 Ton
Brand: PRESSURE SENSOR XJC-DN-1050C Dynamic Rotary Torque Sensor Load Cell 5 Ton
SKU: XJC-DN-1050C
Price: 1 USD
Availability: InStock
Rating: 4.9 (156 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Model Number: XJC-DN-1050C

Usage: PRESSURE SENSOR

Theory: Resistance Sensor

Accuracy: 0.05%FS

Type: rotary torque sensor

Certificate: CE RoHS

Warranty: 12 Months

Capacity: 0-5N.M

Brand: XJC

Working temperature: -10~60

RPM: 4000 times/ min

Basis informatie

Certificering: CE RoHS

Model Number: XJC-DN-1050C

Betalen & Verzenden Algemene voorwaarden

Packaging Details: XJC-DN-1050C Dynamic Rotary Torque Sensor Packing: Standard exporter carton packing (Other packing requirement accept upon further request )

Supply Ability: 3000 Piece/Pieces per Month

Productomschrijving

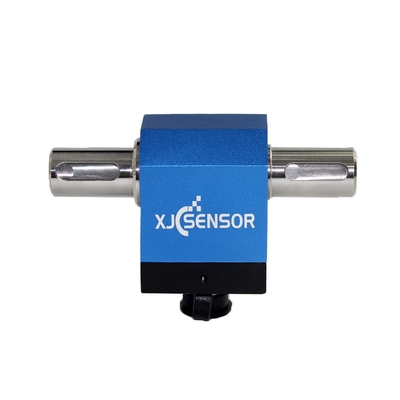

XJC-DN-1050C Dynamic Rotary Torque Sensor

Banner

Product Description

High-precision resistance strain principle through the brush to realizes power supply and signal output.

Low and medium range torque measurement can be measured in both positive and negative directions torque value .

The two ends are axial bonding, easy to install.

The maximum speed of revolution less than 4000 times / min.

Capacity	0--0.1/0.2/0.3/0.5/1/2/3/5(N.M)	driving voltage	12V DC
Zero balance	0-± 1F.S.	Rated output	1.0~2.0V/10g
Safe load limit	120		±0.1; ±0.3; ±0.5 F.S.
Cable size	3m	Compensated temp range	-20~+60
Hysteresis	±0.1; ±0.3; ±0.5 F.S.	Operating temp range	-10~+60
Repeatability	0.5% F.S.	Insulation	2000VDC
Input impedance	700±10/350±10	Output impedance	700±5/350±5
Wire connection	Can meet static torque. Electrical connection mode:input(power supply+):1-Red ;output signal+:2-yellow output signal- : 3-white ;input(power supply-):4-green Please refer to the sensor verification certificate, if plug seat number causes the color change.
