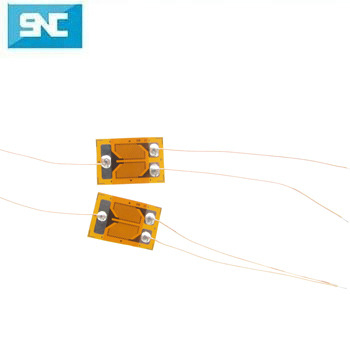

Aldehyde BF350-3HA Grade Transducer Phenolic Torsion Shear Half Bridge Strain Gauge

100 Pieces
MOQ
$1.60(100 - 199 Pieces) $1.50(200 - 299 Pieces) $1.40(300 - 499 Pieces) $1.30(>=500 Pieces)
Prijs
Aldehyde BF350-3HA Grade Transducer Phenolic Torsion Shear Half Bridge Strain Gauge
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: BF350-3HA strain gauge series
Base Material: phenolic aldehyde
Grid material: imported konstantan alloy
error to nominal value resistance: 350 +/-3 ohm
Tolerance to average resistance: less than 0.4 ohm
Temperature: room temp.(-30- +60 degree )
Sensitivity and dispersion: 2.0+/- 1%
output coefficient on average: less than 2 um/m/ degree
dispersion scope to heat output: less than 30 um/m
Ultimated resistance in room temp.: 20000M ohm
ITEM: Half Bridge Strain Gage
Basis informatie
Model Number: BF350-3HA strain gauge series
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 100 pcs / pack
Productomschrijving

BF350-3HA Transducer Grade Torsion Shear Half Bridge Strain Gage







Product Overviews





Features:



ParametersBF SeriesBF SeriesBA Series
Backing materialphenolicModified phenolicPolyimide
Grid materialconstantanKarmaconstantan(Karma)
Typical resistance120/350/1000350 /1000/2000350 / 1000
Average resistance tolerance≤ ±0.1%
Typical sensitivity2.00~2.201.80~2.201.86~2.20
Sensitivity coefficient dispersion≤ ±0.1%
Strain limit2%
Fatigue life≥ 107(±1000)
Operating temp. range-30~+80
Temp. self-compensation coefficient9, 11,16,23,27





Strain Gauge Buying Guide









HA Series Strain Gauges





ItemModelGrid Size
L*W mm		Base Size
 L*W mm		CreepGrid Material
BF(BA)175-2HA(**)-A*2.0*4.29.0*5.6A4constantan
BF(BA)350-1HA(**)-A*1.2*5.08.0*4.0A6constantan
BF(BA)350-2HA(**)-A*2.4*4.69.5*5.3B4,B2,B0constantan
BF(BA)350-2.5HA(**)-A*2.5*4.39.5*5.8B4,B2,B0constantan
BF(BA)350-2HA-P(**)-A*2.0*4.49.0*5.6A2,A4,A5,A6,B0,B4constantan
BF(BA)350-3HA(**)-A*2.8*4.19.7*6.2B0,B2,B4constantan
BF(BA)350-3HA-P(**)-A*3.0*4.59.4*6.5A0~A9,B0~B8constantan
BF(BA)350-4HA(**)-A*3.8*4.29.0*7.8A4,A6,B0,B4constantan
BF(BA)350-6HA(**)-A*5.7*6.110.9*10.5A4constantan
BF(BA)650-3HA(**)-A*2.8*4.89.5*6.1B0constantan
BF(BA)700-3HA(**)-A*2.8*5.09.6*5.9B0constantan
BF(BA)700-3HA-P(**)-A*3.0*5.49.9*6.2A4constantan
BF(BA)700-4HA(**)-A*3.8*6.59.4*8.0A5constantan
BF(BA)1000-3HA(**)-A*3.0*5.59.7*6.3A4,A8,B2,B6,B8,B0constantan
BF(BA)1000-4HA(**)-A*4.0*5.69.9*7.5B0constantan
BF(BA)60-3HA-B(**)-A*3.0*4.19.4*6.5A4constantan
BF(BA)175-2HA-B(**)-A*2.0*4.29.0*5.6A4constantan
BF(BA)175-3HA-B(**)-A*3.0*4.49.4*6.4A2constantan
BF(BA)350-2HA-B(**)-A*2.4*4.69.5*5.3

A2,A4,A6,B0,B4,B8



constantan
BF(BA)350-3HA-B(**)-A*2.8*4.19.7*6.2A0~A9,B0~B8constantan
BF(BA)350-3HA-BP(**)-A*3.0*4.59.4*6.5A0~A9constantan
BF(BA)350-4HA-B(**)-A*3.8*4.29.0*7.8A4constantan
BF(BA)350-6HA-B(**)-A*5.7*6.110.9*10.5A8,B0constantan
BF(BA)400-3HA-B(**)-A*3.1*4.710.4*7.4A8constantan
BF(BA)650-3HA-B(**)-A*2.8*4.89.5*6.1B0constantan
BF(BA)700-3HA-B(**)-A*2.8*5.09.6*5.9B0constantan
BF(BA)700-3HA-BP(**)-A*3.0*5.49.9*6.2A4constantan
BF(BA)1000-3HA-B(**)-A*3.0*5.59.7*6.3A2,A4,B2constantan
BF(BA)350-2HA-C(**)-A*2.0*2.57.2*6.3A6,A8,B0,B2,B4constantan
BF(BA)350-3HA-C(**)-A*3.1*4.09.5*7.8A4,A6,A8,B0,B2,B4constantan
BF(BA)350-5HA-C(**)-A*4.8*4.110.7*9.3A4constantan
BF(BA)500-3HA-C(**)-A*3.4*8.711.4*7.6A2constantan
BF(BA)1000-5HA-C(**)-A*4.8*6.515.7*9.6A4constantan
BF(BA)350-2HA-D(**)-A*2.0*2.57.2*6.3A0,A2,~B8constantan
BF(BA)350-3HA-D(**)-A*3.1*4.09.5*7.8A0~A9,B0~B8constantan
BF(BA)350-8HA-D(**)-A*8.0*9.013.0*14.4A0constantan
BF(BA)1000-3HA-D(**)-A*3.1*5.410.7*7.8A4,A8,B0,B4constantan
BF(BA)120-2HA-E(**)-A*2.0*3.57.0*5.6A8constantan
BF(BA)350-2HA-E(**)-A*2.1*4.38.9*5.7A8constantan
BF(BA)350-3HA-E(**)-A*2.9*4.08.8*6.8A4,A8,B0,B1,B4constantan
BF(BA)350-4HA-E(**)-A*4.2*2.88.3*8.3A4,A8constantan
BF(BA)350-6HA-E(**)-A*5.9*3.710.5*11.1A8constantan
BF(BA)400-3HA-E(**)-A*2.9*4.08.8*6.8A4,A8,B0,B1,B4constantan
BF(BA)700-3HA-E(**)-A*3.4*6.38.5*7.6A2constantan
BF(BA)350-2HA-F(**)-A*2.0*4.38.9*5.7A8constantan
BF(BA)350-3HA-F(**)-A*3.0*3.98.8*6.8A4,A8constantan
BF(BA)350-4HA-F(**)-A*4.2*2.88.3*8.3A4,A8constantan
BF(BA)350-6HA-F(**)-A*5.9*3.710.5*11.4A8constantan







Product Uses





Strain Gauges Series









Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.



Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.







FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.



2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.



3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.



4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.



5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.



6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
