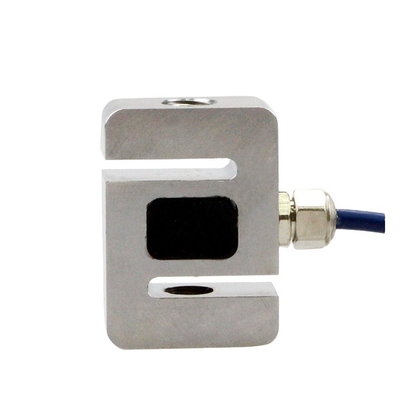

GSL312 Miniature Compression And Tension Stainless Steel S Load Cell 2kg 200kg Type

2.0 Pieces
MOQ
GSL312 Miniature Compression And Tension Stainless Steel S Load Cell 2kg 200kg Type
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: GSL312
Usage: compression and tension
Theory: Strain gauge deformation
Output: analog output signal
Description: GSL312
Range: 2, 5, 10, 15, 20, 30, 50, 100, 200kg
Comprehensive error: ≤ ±0.1%F.S
Sensitivity: 1.0/2.0±10%mV/V
Zero balance: ± 2.0%F.S
Non-linearity: 0.1%F.S
Creep: ±0.05%F.S/30min
Input resistance: 410±10Ω
Output resistance: 350±5Ω
Safe overload: 150%F.S
Product name: GSL312 Stainless Steel Miniature S Type Load Cell 2kg 200kg
Basis informatie
Model Number: GSL312
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard export packaging
Supply Ability: 10000 Piece/Pieces per Month GSL312 Stainless Steel Miniature S Type Load Cell 2kg 200kg
Productomschrijving

GSL312 Stainless Steel Miniature S Type Load Cell 2kg 200kg



Related recommend







Product Description



What is strength of GSL312 Load cell?

1.Stainless steel

2.Small size, both tension and compression measurement

3. Suitable for testing the insertion and withdrawal force, rivet machine, welding machine, etc

The specifications of GSL312 Load cell



Range

2, 5, 10, 15, 20, 30, 50, 100, 200kg

Comprehensive error

 ±0.1%F.S

Sensitivity

1.0/2.0±10%mV/V

Zero balance

± 2.0%F.S

Non-linearity

0.1%F.S

Creep

±0.05%F.S/30min

Input resistance

410±10Ω

Output resistance

350±

Insulation resistance

5000MΩ/100VDC

Temp.effect on span

±0.05%F.S/10℃

Temp.effect on zero

±0.05%F.S/10℃

Compensated temp range

-10~+60℃

Operating temp Range

-20~+80℃

Compensated temp range

5~12V

Operating temp Range

120%F.S

Safe overload

150%F.S

Protection grade

IP66



Product Details

The Dimension of GSL312 Load cell





The Applications







FAQ



Q:What are the applications of S type load cell?

A: Batching scale, electronic hook scale, packing scale, belt scale, crane scale, force measurement, etc.



Q:What is the raw material?

A: Stainless steel



Q: What is the load range?

A: 2-200KG



Q: What is the accuracy/precision?

A: ≤ ±0.1%F.S



Q: What is the force direction?

A: Tension and compression
