Thuis /Producten/Compressietype-belastingcel/PRESSURE SENSOR SNC2E6 Stainless Steel Bolt Tension Compression Threaded Rod In Line Load Cell 10Kg 20Kg

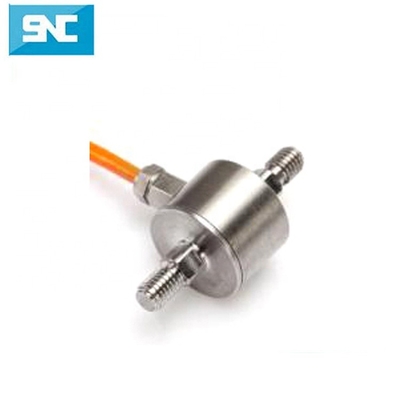

PRESSURE SENSOR SNC2E6 Stainless Steel Bolt Tension Compression Threaded Rod In Line Load Cell 10Kg 20Kg

1.0 Units
MOQ
PRESSURE SENSOR SNC2E6 Stainless Steel Bolt Tension Compression Threaded Rod In Line Load Cell 10Kg 20Kg
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: SNC2E6
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Digital Sensor
Model: SNC2E6
Capacity: 10KG, 20KG
Creep: ±0.1 %FS/30min
Non-linearity: ±0.1 %FS
Output resistance: 350±20Ω
Insulation resistance: ≥ 2000 MΩ
Zero temperature coefficient: ±0.03 %FS/10℃
Sealing grade: IP66
Safe overload: 120 %FS
Wiring: Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-
Basis informatie
Model Number: SNC2E6, SNC2E6
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 20 units per carton
Supply Ability: 500 Unit/Units per Month SNC2E6 Stainless Steel Bolt Tension Compression Threaded Rod In
Productomschrijving

SNC2E6 Stainless Steel Bolt Tension Compression Threaded Rod In Line Load Cell 10Kg 20Kg

Product Description

Capacity10kg, 20kg
Sensitivity please check with us
Precision0.2 %F·S
Creep±0.1 %F·S/30min
Non-linearity±0.1 %F·S
hysteresis error±0.1 %F·S
Repeatability±0.1 %F·S
Zero temperature coefficient±0.03 %F·S/10℃
Temperature Effect On Output±0.03%F·S/10℃
Input resistance350 ± 20 Ω
Output resistance350 ± 20 Ω
Insulation resistance≥ 2000 MΩ
Excitation voltage5 ~ 12 VDC
Working temp. range-30~70℃
Safety overload120 %F·S
Sealing gradeIP66
Materialstainless steel
Cable length2.2 × 2000 mm
Wiring Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-


Accessories


Related Products

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
