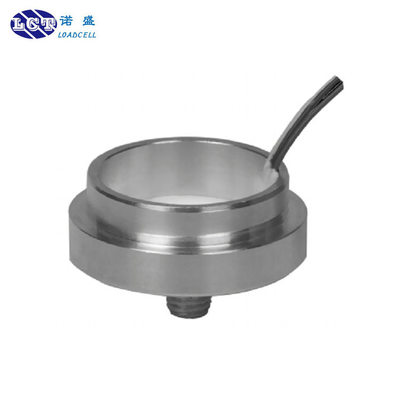

Special used for force measuring in narrow space. Through Hole Seal Type 20,50,100 Donut(kg) Load Cell For Force Measurement

10 Pieces
MOQ
Special used for force measuring in narrow space. Through Hole Seal Type 20,50,100 Donut(kg) Load Cell For Force Measurement
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: LAU-A
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Product name: Compression Load Cell
Application: Special used for force measuring in a narrow space.
Structure: Aluminum alloy
Capacity: 20,50,100 (kg)
Rated output: 2.0±20%mV/V
Zero balance: ±0.1mV/V
Linearity Error: ±1%R.O.
Repeatability Error: ±1%R.O.
Accuracy Class: X
Certificate: ISO 9001:2008;
Basis informatie
Certificering: ISO 9001:2008;
Model Number: LAU-A
Betalen & Verzenden Algemene voorwaarden
Packaging Details: cartons,by sea/air
Supply Ability: 50000 Piece/Pieces per Month
Productomschrijving

Product Description

Compression Load Cells

Capacity

20, 50, 100 (kg)

Accuracy Class

X

Rated output

2.0±20%mV/V

Zero balance

±0.1mV/V

Linearity Error

±1%R.O.

Repeatability Error

±1%R.O.

Hysteresis Error

±1%R.O.

Creep(2 minute)

±1%R.O.

Temp.Effect on Output

±0.05%R.O./10°C

Temp.Effect on Zero

±0.05%R.O./10°C

Input resistance

395±10Ω

Output resistance

350±5Ω

Insulation Resistance

≥2000MΩ(50VDC)

Excitation,recommended

≤6VDC

Safe overload

120%.R.C

Operating Temp. Range

-10-+40°C

Cable and length

φ0.65mm×0.1m

Features:
1.Aluminum alloy;
2.Special used for force measuring in a narrow space.
Related Products

Our Services

Company Information

Xiamen Load Cell Technology Co.,Ltd.(LCT) is an open coastal city,with the advantages of special zone information and logistics. Our company takes product technology as guide, cooperates with partners confidentially, and strives to become your better supplier with perfect after-sales service as its guarantee.Since our company began to study resistance strain gauge in 1997, it has continuously pursued technological innovation and developing and producing in strict accordance with the 0IML62# recommendation and GB/T13992-92 standard. Our company employs several senior members of the strain gauge industry as the technical consultant for many years, and has more than 20 years of technical and technological personnel engaged in the industry, so as to ensure the long-term stability and consistency of our products.For many years, our company has been strengthening its cooperation with research institutions in polymer material industry to develop base materials which suitable for high-quality resistance strain gauge. The strain gauge produced by our company is suitable for manufacturing medium-precision and high-precision weighing load cells and precision stress analysis, greatly reducing the lag and non-linear error of products and improving the stability of the product.

FAQ

1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.



2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.


3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.


4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.


5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.


6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.


7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
