Weighing Sensor Cheap Weighing Scales Precision Lab Crane Measures High Quality Overhead Load Cells

1 Piece
MOQ
Weighing Sensor Cheap Weighing Scales Precision Lab Crane Measures High Quality Overhead Load Cells
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: tsc
Type: Load Cell
Usage: weighing sensor
Theory: weight sensor
Output: analog signal
Description: load cell
capacity: 50-1000KG
customized: accept
accuracy: high
construction: construction
Nominal ambient temperature range: -10...+40℃
Operating temperature range: -40...+65℃
Input resistance: 387±4Ω
Product name: load cell
Protection class: IP67
Ultimate overload: 300% F.S
Basis informatie
Model Number: tsc
Betalen & Verzenden Algemene voorwaarden
Packaging Details: International standard package.
Productomschrijving
Product Description

Product material:





         High quality stainless steel, nickel plated surface.



Product Structure:

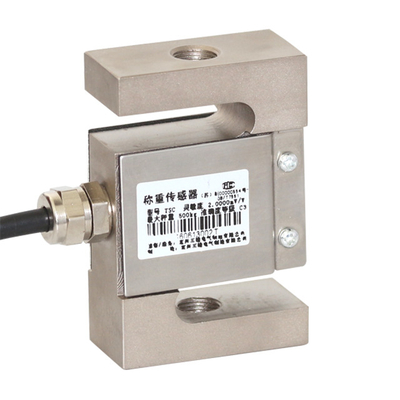

 S type load cell ,tension and compression

Good output symmetry , compact structure , simple to install ,full range of capacities.

Product application:


       Suitable for tension measurement, batching systems, electromechanical scale, crane scale, hopper scale, Blending &mixing systems, belt scales and package systems, etc.

Specification
Parameter
Unit of measure
Specifcation
 Emax(Max. capacity)
t
50
100
200
300
500
1000
Sensitivity
mV/V
2±0.002
Accuracy class to OIML R60

C3
 Non-linearity
%F.S
≤±0.0167
Repeatability error
%F.S
≤±0.010
Hysteresis error
%F.S
≤±0.0167
 Creep, 30 minute
%F.S
≤±0.0167
Zero balance
%F.S
±1.0
 Nominal ambient temperature range
-10...+40
 Operating temperature range
-40...+65
 Temperature effect on sensitivity
%F.S/℃
≤±0.002
Temperature effect on zero
%F.S/℃
≤±0.002
 China metrology certification number

0000554-1
 Explosion proof certification number

GYB16.1026
E xplosion proof mark
Ex ia IIC T4 Ga
Maximum number of verification intervals
Nmax
3000
 Minimum load cell verification interval
Vmin
Emax/6000
Apportionment factor
0.7
Minmum dead load
kg
0
Input resistance
Ω
387±4
 Output resistance
Ω
350±1
 Insulation resistance
≥5000(50V DC)
 Recommended excitation voltage
V(DC/AC)
5...15
 Maximum Excitation
V(DC/AC)
20
Safe overload
%F.S
150
 Ultimate overload
%F.S
300
 Protection class
IP65
 Load cell material
Allony steel
Cable size
m
A5
Cable diameter
mm
Φ5.2
Company Information

          Silvanus Electric Manufacture(Yixing) Co.,Ltd. is a professional hi-tech enterprise which is established by several aspring young technician since Apr.11 ,2007, the company is specialized in manufacturing high precision load cells and weighing system. On the basis of strong R/D ability and advanced equipment in producing, inspecting and testing , we are specialized in scientific research, production and sales of all kinds of high precision load cells, intelligent eletronic scale, hoisting limiter, computer weighing system,etc.the company' s registered capital is 5 million Yuan, current fixed assets is 10 million Yuan,liquidity is 6 million Yuan, annual sales about 45 million Yuan. With 25000 sq.m area, tens of experienced engineers. We have high reputation in the electronic weighing industry since establishment against our persistent efforts and quality products .

Packing & Delivery
FAQ

1. What is the MOQ?
If we don't have it in stock, the MOQ is 5 pcs
If we have it in stock, we can ship you even 1 pc as sample.

2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2008, NTEP, OIML, we have good quality control.

3. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don't have it in stock, the lead time will be 10-30 days.

4. What is the payment terms?
T/T, Western Union, L/C, Escrow alibaba is acceptable.
Escrow is same like paypal, after you place the order and make the payment on alibaba.com, alibaba company will notify us to make the shipment, your money won't be released until you get the goods.
If we don't make the shipment, you still can take back your money.

5. What is the quality guarantee?
Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
