Kenmerken

Specificaties

Model Number: SQB

usage: pressure sensor

Theory: weighing load cell

Output: analog sensor

Basis informatie

Model Number: SQB

Betalen & Verzenden Algemene voorwaarden

Packaging Details: CARTON OR AS REQUIRED

Supply Ability: 6000 Piece/Pieces per Month electronic weighing scale parts Shear beam load cell used for fl

Productomschrijving

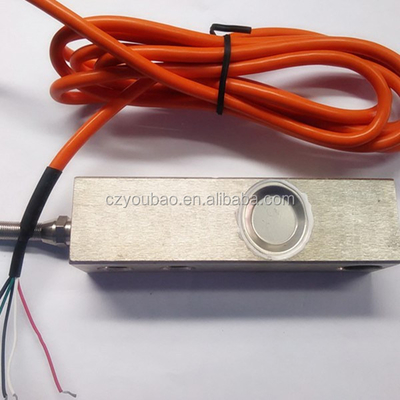

electronic weighing scale parts Shear beam load cell used for floor scale

Product characteristics:

·Steel beam structure
·One end fixed, the other end aggravated, and the rocker head transfer the pressure.
·Good sealing structure (Glue sealing or laser welded sealing selectable).
·Automatic self-aligning after being forced, simple installation, convenient use and good exchangeability.
·Mainly used to manufacture the electronic bench scale, electronic monorail crane scale, floor scale and blending
scale, etc.

Appearance Size:

Technical Parameter

Rated capacities(Emax)	0.5t 1t 2t,2.5t,3t
Rated output	(3±0.002)mV/V or (2±0.002)mV/V
Total error	±0.02% F.S
Repeatability	±0.02% F.S
Creep error(30min)	±0.02%F.S/30min
Working voltage, recommend	5V~12V(AC or DC)
Working voltage, maximum	15V(AC or DC)
Zero balance	±1% F.S
Input impedance	(385±5)Ω
Output impedance	(351±2)Ω
Insulation impedance	≥5000MΩ
Safe overload	150%F.S
Ultimate overload	200% F.S
Temperature range, operating	(-30~+70)°C
Temperature range, compensated	(0~+60)°C
TC SPAN	±0.02%F.S/10K
TCO	±0.02% F.S/10K
Construction	Alloy Steel/Stainless Steel
Protection class	IP67/IP68
Quoted standard	GB/T7551-1997/OIML R60
Wiring method	Red: Exc+, Black: Exc-, Green: Sig+, White: Sig-

YUBO Products list:

We YUBO SCALE take part in Chinese interweighing every year:
